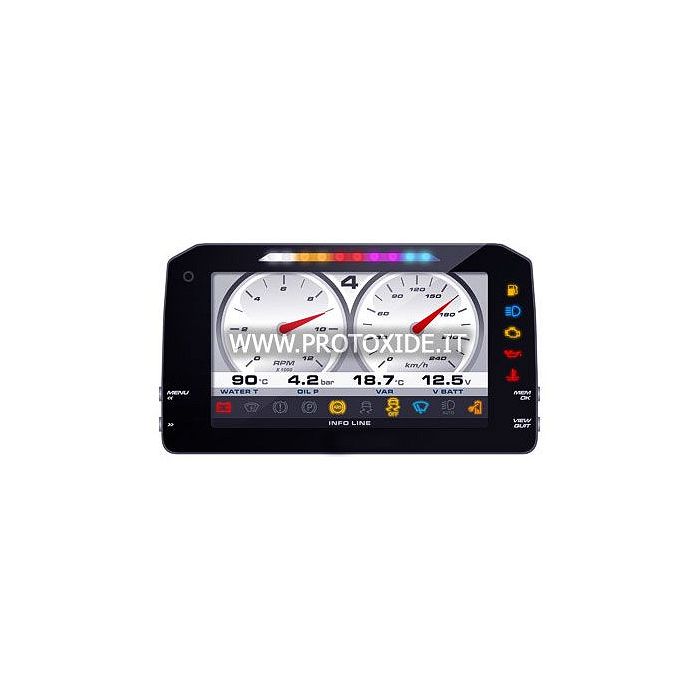

Digital dashboard for cars and motorcycles 6 "model P
Competition digital dashboard for cars and motorcycles with 6 "inch display
SECURE ENCRYPTED PAYMENTS
TRACKING NUMBER FOR ALL ORDERS
MON-FRIDAY SUPPORT 10.00-12.30 15.00-17.30
Dashboard with low consumption matrix screen
Black aluminum body
- This dashboard is connected via a wire or two wires with serial or can bus protocol to almost all the racing ECUs, Efi-Autronic-Unichip-Motec etc allows you to already have all the engine parameters inside.
It is also possible to connect directly to the car or motorcycle by simply connecting the sensors directly to the dedicated inputs:
8 analogue inputs 0-5V
6 configurable alarm LEDs
10 fully configurable gear shift lights
1 rpm input channel
1 input channel x speed p>
- 1 output channel
Display of the gear engaged without installing any sensor
Grade 2 waterproof means it remains functional even in the worst weather conditions
Protocols for different electronic control units (contact us to find out how it is connected and on which control unit it can be connected)/ p>
- Always upgradeable via connection cable included
- In most cases, the dashboard is connected via 2 power supply wires and a "ONLY" data connection wire, which allows you to view all the engine parameters.
- USB cable included in the package, wifi connection and multilingual program including Italian language.
- Many dashboards available in stock and same day despatch.
- If you find it difficult to set up your dashboard, we can do it for youwith this service, as long as you have an internet connection
Name | Value |
---|---|
Supply | 12 Volt |
