TialSport Xona Rotor Borgwarner turbocharger speed gauge, tachometer and sensor 52mm Electronic instrumentation varies

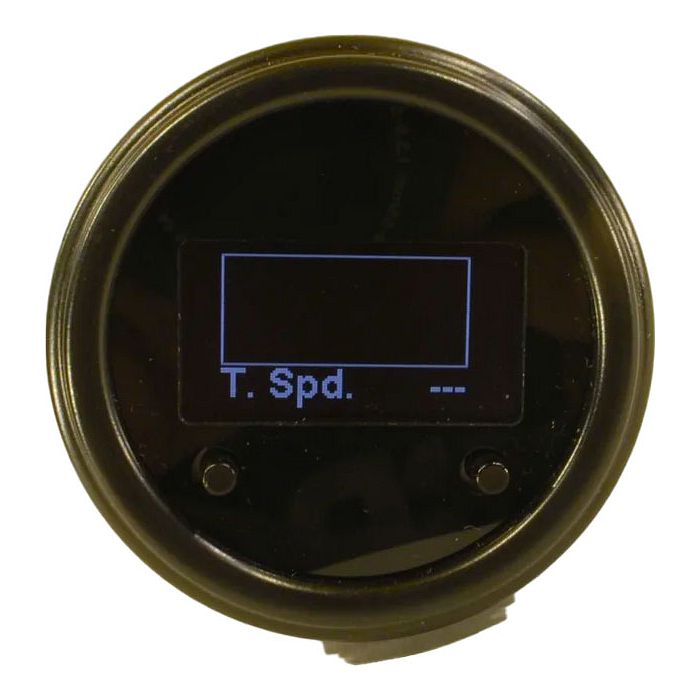

TialSport Xona Rotor Borgwarner turbocharger speed gauge, tachometer and sensor 52mm

€799.00
Tax included Solitamente 24 ore

Unique pressure gauge of its kind, it measures the revolutions of the turbine and therefore the speed with absolute precision with the possibility of also being used with a turbo pressure gauge. Kit complete with pressure gauge and all sensors for TialSport Xona Borgwarner turbochargers sensor or kit complete with 52mm pressure gauge that can be installed on all turbochargers with 0-5 volt output signal and secondary output for acoustic or visual warning.

Configuration
Quantity
  Last items in stock

 Usually shipped within 24 hours

Add to favorites
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
Pinterest


SECURE ENCRYPTED PAYMENTS



TRACKING NUMBER FOR ALL ORDERS



MON-FRIDAY SUPPORT 10.00-12.30 15.00-17.30

  • Pressure gauge measures turbocharger rpm speed complete with very useful sensor for checking surge phenomena, leaks in the hoses or intercooler and for concretely understanding the possibilities that a turbocharger can still offer and understanding if there are margins for improvement with the turbocharger installed, in case we further increase the boost pressure.
  • If a perforated seat is not already present, as all Gtx Gen2 and G series turbochargers have, it is necessary to prepare a hole on the intake scroll which allows the sensor to count the number of blades and thus obtain the precise revolutions to be read on the digital instrument 52mm round.
  • Pressure gauge designed and manufactured in the USA that displays both digital and graphic numeric values of turbocharger speed on screen for better understanding , in real time. The instrument also provides a correctly linearized 0-5v output signal, to be used with acquisition systems, control units or dashboards.
  • Preloaded options are included for Xona and BorgWarner intake impeller sizes with impeller speed limits defined by turbocharger performance island maps , thus changing the number of blades, with the ability to define the speed limits of any turbocharger.
  • The instrument also has an optional output that allows it to be connected to a contact to warn the driver when the rpm limit is exceeded so it is possible to connect a light or a buzzer acoustic warning to be thus alarmed.
  • The tool is designed to flash the display when the defined wheel speed limit is reached and also includes an output signal to trigger an external warning or control device.
  • There is an optional 0-5 volt analog input to display in the same pressure gauge so it is possible to configure any sensor making it become a pressure gauge to also read another parameter. Therefore, by connecting one of our ProtoXide pressure sensors it will also be possible to use it as a turbo pressure gauge in the usual display with signal and full scale that can be linearized to your liking.
  • WORLDWIDE news Assembly instructions in Italian and post-purchase ProtoXide technical support, the best ever, also perfectly suited for turbodiesel engines.
