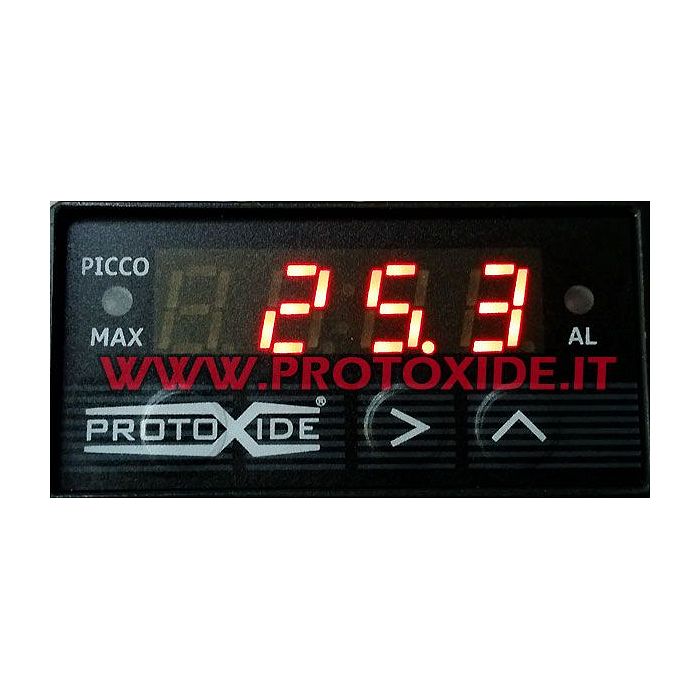

Compact rectangular 4 bar turbo pressure gauge with pressure switch and max peak memory Turbo, Petrol, Oil pressure gauges

Compact rectangular 4 bar turbo pressure gauge with pressure switch and max peak memory

€174.50
Tax included Solitamente 24 ore

Manometer for measuring turbo pressure up to 4 bar. ProtoXide rectangular instrument with 4 digits digital with red display, compact and peak memory and also has the function of pressure switch

Color
  • Blue
  • Red
Template
Quantity
  Usually ships within 24 hours
Remember ! You find it on Protoxide Only!

Add to favorites
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
Pinterest


SECURE ENCRYPTED PAYMENTS



TRACKING NUMBER FOR ALL ORDERS



MON-FRIDAY SUPPORT 10.00-12.30 15.00-17.30

Turbo pressure gauge up to 4 bar very precise and very fast digital with pressure sensor with 4 red or blue digits. It is possible to choose from the menu the sensor suitable for your application to read the maximum pressure. The advice is to choose the lowest sensor based on your application to have a better resolution. For example, if the engine runs at 1.4-1.5 pressure, we suggest purchasing the sensor with a maximum pressure of 1.7 bar, because if you purchased the 4 bar one it would have a lower resolution. In the case that our engine runs at 2.1-2.2 bar, purchase the sensor with a full scale of 4 bar.

  • Incredibly compact dimensions, in fact it allows for installation with a 45x22 mm hole, with a depth of 70 mm,
  • With the simple touch of a button it is possible to recall the maximum peak reached with the simultaneous lighting of the high intensity blue LED which will show the maximum peak reached and will remain in memory even after turning off the ignition, as it writes directly to the internal non-volatile flash memory! ---- UNIQUE FUNCTION ----
  • Internal relay that can be activated based on the set point we set, which will allow us to activate or deactivate any activator when a certain pressure is reached, pressure switch function also with the possibility of inserting a hysteresis, together with a red LED on the display . 3AMP
  • Show not to the tenth but to the HUNDREDTH OF A BAR!
  • Instrument with very fast sampling with 4 measurements
  • 12 DC power supply and consumption less than 2 watts
  • Total accuracy of 0.2% "it's our most accurate meter! "
  • Built-in dimensions 48X24X75mm
  • One-touch dimming function
  • Via stabilized 5 volt output for sensor power supply
  • The 4 bar version actually works between Turbo pressure gauge up to 4 bar very precise and very fast digital with pressure sensor
  • Dedicated sensor with relative filter and pipe to be used only for air (no petrol, water or oil).
Name Value
Supply 12 Volt
Display 4 cifre
Precision 0.2%
Depth 75mm
Output 0-5 volts Si
Relay output Si
