Rectangular digital pressure gauge Pressure switch BOSCH 0261545072 - compact - with max peak memory Pressure gauges Turbo, P...

Rectangular digital pressure gauge Pressure switch BOSCH 0261545072 - compact - with max peak memory

€208.00
Tax included 2-8 giorni

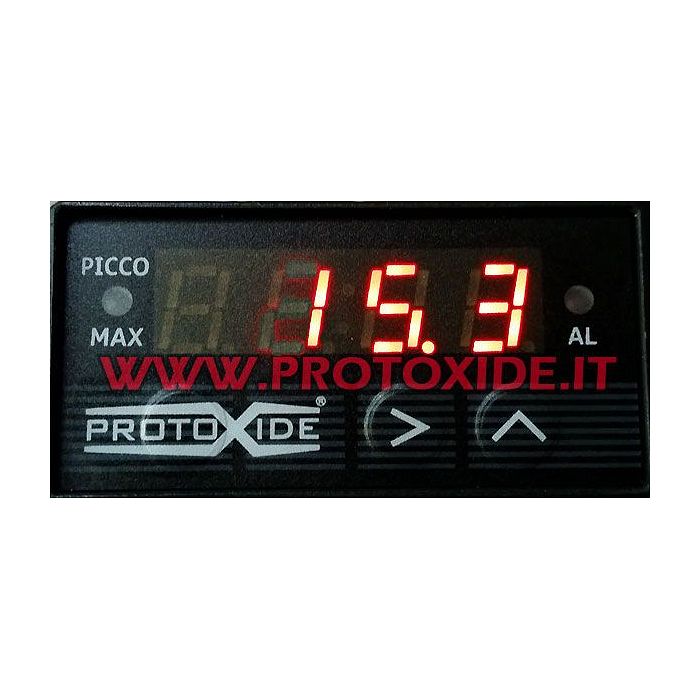

Manometer for measuring rail pressure up to 2000 bar. ProtoXide rectangular instrument with 4 digits digital with red display, compact and peak memory.

Quantity
  Not available. Usually ships in 9-16 days
Remember ! You find it on Protoxide Only!

Add to favorites
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
Pinterest


SECURE ENCRYPTED PAYMENTS



TRACKING NUMBER FOR ALL ORDERS



MON-FRIDAY SUPPORT 10.00-12.30 15.00-17.30

  • Brand new gauge to indicate RAIL pressure specific for BOSCH sensor 0261545072 up to bar with 4 red digits with decimal precision of bar
  • Incredibly compact dimensions, in fact it allows for installation with a 45x22 mm hole, with a depth of 70 mm,
  • With the simple touch of a button it is possible to recall the maximum peak reached with the simultaneous lighting of the high intensity blue LED which will show the maximum peak reached and will remain in memory even after turning off the ignition, as it writes directly to the internal non-volatile flash memory! ---- UNIQUE FUNCTION ----
  • Pressure switch function, with internal relay that can be activated based on the set point we have set, which will allow us to activate or deactivate any activator when it is reached together with a red LED on the display . 3AMP
  • Instrument with compensated reading
  • Instrument with very fast sampling with 4 measurements per second
  • 12 DC power supply and consumption less than 2 watts
  • Total accuracy 0.2% "it's our most accurate meter! "
  • Built-in dimensions 48X24X75mm
  • One-touch dimming function
  • Via stabilized 5 volt output for sensor power supply
  • Dedicated sensor with stainless steel case
Name Value
Supply 12 Volt
Display 4 cifre
Precision 0.2%
Depth 75mm
Relay output Si
