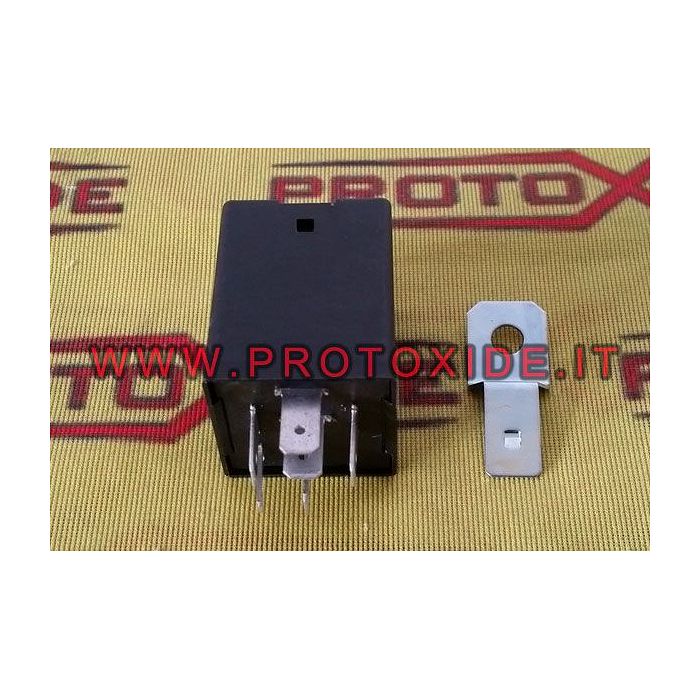

Pulse relay 12v negative or positive command DC 01170716

• With newly built 12 volt relays you can simply use a very fast impulse with a negative or positive command to activate and keep a load of up to 20amp activated and then always turn it off with the usual impulse of a few milliseconds, and so on.
• It is found in multiple uses from control units for competition on cars or on industrial vehicles such as excavators 01170716 and agricultural vehicles and nautical applications.
• 12v impulse relay negative or positive COMMAND 01170716
• Relay with impulse control off - on with positive or negative control relay. There are many of you who order it from all over the world. Untraceable.
• Automotive-type relay with two NO and NO contacts with impulse control which, depending on the model purchased, can be positive impulse or negative impulse and can also be used on agricultural vehicles, excavators or small excavators even from 1990 such as Volvo Crawler Excavators Pel -Job with code 01170716 or nautical relays.
• It will be possible with a simple positive or negative pulse with a button lasting even a few milliseconds, to activate and keep activated a load of up to 20 amps. It will then be necessary to always press again with a single impulse to definitively de-energize the load.
• Check the compatibility of your relay pinout and the compatibility with your application with your use.
• 12 volt power supply , there is also a 24 volt version in the accessories item but it is another version of relay, to be used in direct current DC.
• Possible example of use: by providing a ground with a button this particular relay is powered which remains energized even if we release the command, if we then press the button again we remove the power and the relay de-energises and returns to the initial state 814..

Relay pinout connection:

87= NO output normally open

87a= NC output normally closed

30= +12 volts under panel

In= +12 volts direct to battery

31= Mass

85= Negative or positive 12v pulse depending on the model ordered
